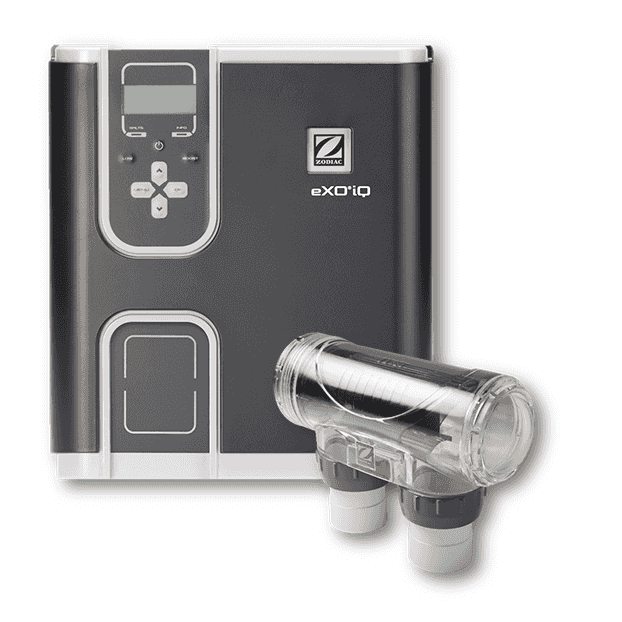

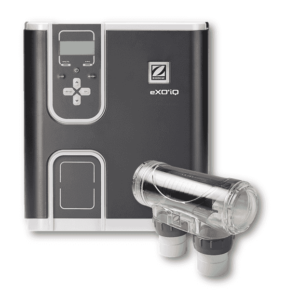

eXO® iQ Salt Chlorinator

eXO® iQ Salt Chlorinator

  • iAquaLink technology
  • Long-life RP cell
  • Smart temperature sensor
  • Variable speed pump control
  • Viable with saltwater and mineral salt pools
  • Upgrades available for pH and ORP management

Description

eXO® iQ Salt Chlorinator the chlorinator that knows best.

The next generation of premium chlorinators is here. Packed with a range of fantastic new features with upgrades available for ORP and pH management, the all-new eXO® iQ Salt Chlorinator has all the features of the eXO® with the option of connecting to our popular iAquaLink system for increased convenience and control.



Long-life RP cell

Long-life RP cell

These upgraded automatic cleaning cell plates have an ultra-long life, combined with smart tech in the chlorine production that will provide years of performance.



Multi-colour light control

Multi-colour light control

Control your pool light(s) directly from the chlorinator (or your smart phone with iAquaLink). This feature requires additional relay box to connect. Ask your nearest dealer for more information.



Salt or mineral switcher

Salt or mineral switcher

Use normal pool salt or mineral salts to create chlorine and keep your pool water healthy and sanitised at all times.



Pool cover mode

Pool cover mode

Allows you to connect an automatic pool cover that will automatically drop the output to your desired level without having to do a thing.



iAquaLink enabled

Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.



Smart temperature sensor

Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.



Variable speed pump control

Provides greater control over pump speed and helps reduce energy consumption. The eXO can communicate to RS485 enabled pumps.

Specifications


Model No.eXO® iQ MideXO® iQ Large
Technology
Recommended pool size ‘000L (in mild climate)75100
Nominal chlorine production25 g/h35 g/h
Operating mode(s)Normal = adjustable by 10% increments from 0% – 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs.Normal = adjustable by 10% increments from 0% – 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs.
Equipment controlFilter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222)Filter pump: Any single speed pump or Zodiac® variable speed pump. Lights: Any single colour light or any Zodiac/Jandy sequence Muliticolour light (note will require additional relay box part number WW000222)
Salt level (recommended – min.)4000ppm recommended (minimum – 3300ppm)4000ppm recommended (minimum – 3300ppm)
Cell protectionTemperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear.Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear.
Warning indicators“Low salt”” indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal.“Low salt”” indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal.
Power supply196 W / 110-240 VAC / 50-60 Hz196 W / 110-240 VAC / 50-60 Hz
DimensionsPower pack: H-370mm x W-320mm x D-100mm RP Cell: H-160mm x W-320mm x D-110mmPower pack: H-370mm x W-320mm x D-100mm RP Cell: H-160mm x W-320mm x D-110mm

Brochure

eXO Datasheet


Manual

eXO-iQ_Owners_Manual
